Impact Recording Device

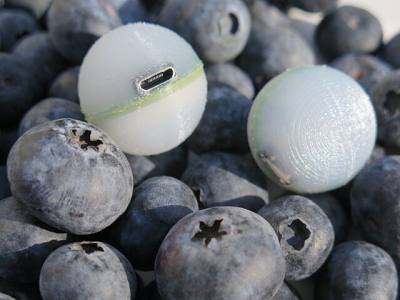

The IMPACT RECORDING DEVICE (IRD) is an advanced technology tool for monitoring potentially damaging impacts to your fruits, vegetables and food products. From the field to the processed package and all points in between, the IRD will identify sources of damage allowing you to make adjustments to handling systems and protect quality.
GET A QUOTE
Share

Product Introduction

Performance Parameter

Video

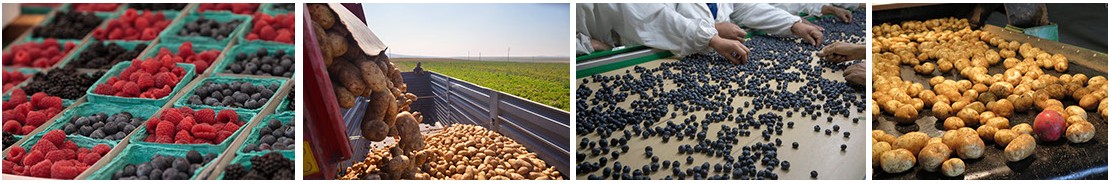

The IMPACT RECORDING DEVICE (IRD) is an advanced technology tool for monitoring potentially damaging impacts to your fruits, vegetables and food products.  From the field to the processed package and all points in between, the IRD will identify sources of damage allowing you to make adjustments to handling systems and protect quality.

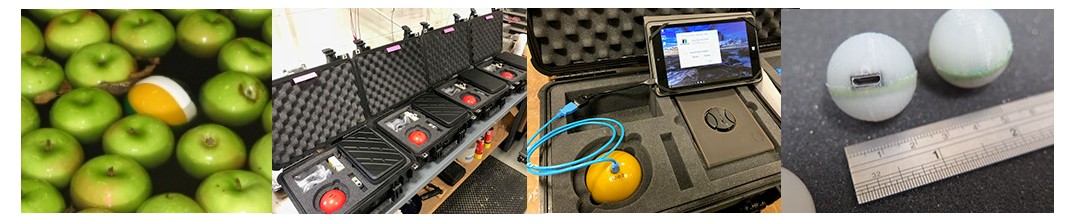

Series 500 IRD



The Series 500 Impact Recording Device has all the same great functionality of the Series 400 but has been updated for improved user experience and ongoing improvement.  We've changed the connecting port to a Micro USB for easier communications and charging of the unit.  Improved battery life and other features are all part of our commitment to reinvest in the technology and remain a leader in bruise evaluation in agriculture.



Force and Duration of Impact are the true measures of damage potential

  Many devices on the market measure only the G force and ignore the equally important component of time duration.  Not all impacts are created equal. Surface characteristics, G force and duration all contribute to understanding what impacts are of importance and which are less so to your product quality.

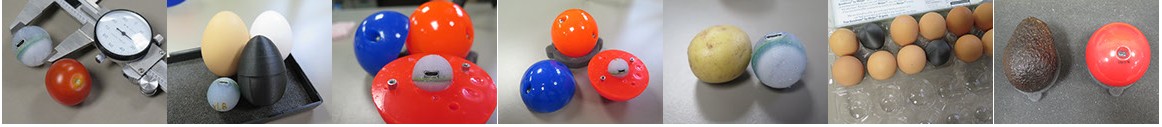

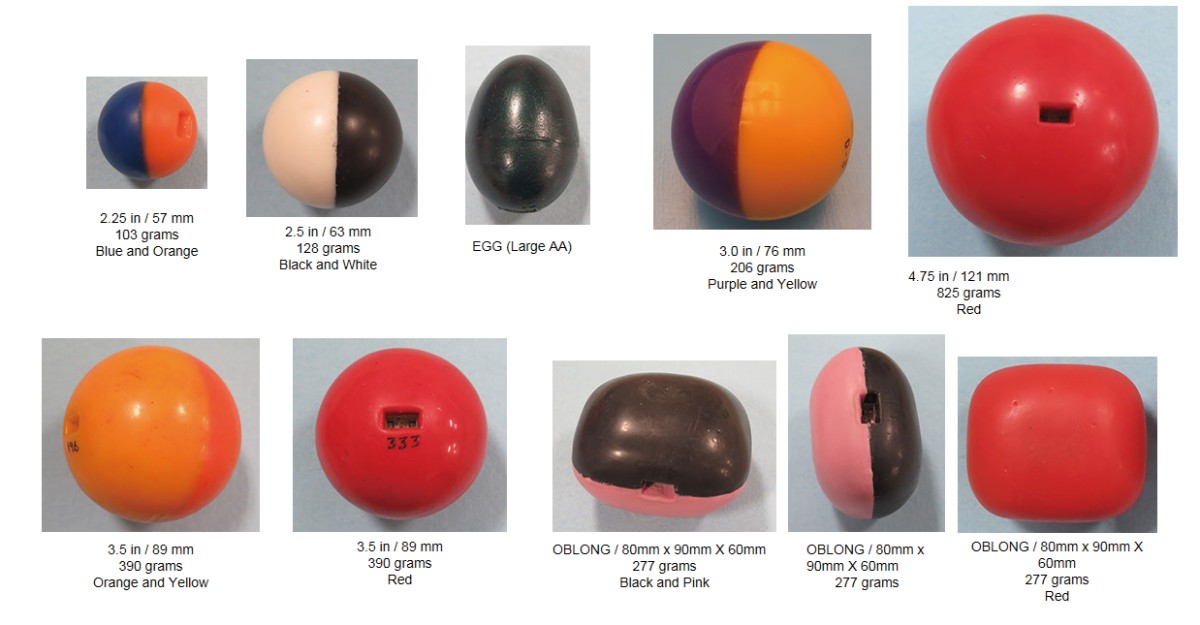

Impact Recording Device (IRD) sizes and shape options:



Performance Parameter:


Data Recording



Sample Rate:                            Selectable 488 Hz - 5 kHz

Trigger Threshold:                    Selectable 0-400 G

Pre-trigger sample number:      Selectable 1-12 samples

Post-trigger sample number:    Selectable 1-12 samples

Sampled information:                Impact amplitude, time and 3-dimensional impact orientation

Data storage capacity:              Dependent on impact characteristics and sampling rate

Impact Detection Criteria



Sensor:                         Tri-axial accelerometer

Impact amplitude:         +/- 500 G (3% accuracy)

Frequency response:    5 Hz - 3 kHz

Digitation:                      256 counts



Power Requirements



Battery:                            6 VDC Nickel Metal Hydride

Time between charges:   4-10 hours, dependent upon sample rate; automatically reverts to low      power mode when battery voltage drops below 5.0 volts



Operating Conditions



Temperature range:    -20F to 140F (-29C to 60C)

Moisture:                    Immersible in non-corrosive liquids
